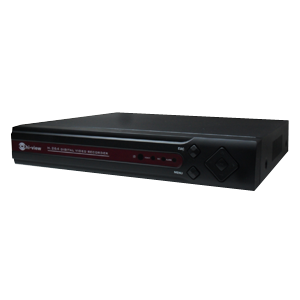

ต่อกล้องได้สูงสุด 8 ตัว แสดงผลแบบ RealtimeNetwork เทคโนโลยีการบีบอัดข้อมูลแบบ H.264 D1 รองรับ 1 SATA Harddisk สูงสุดได้ถึง 2048 GB ช่องต่อสัญญาณเสียง I/O, USB2.0
-----------------------------------------------------------------------------
- รองรับการควบคุมผ่านเมาท์แบบ USB 2.0
- รองรับการควบคุมและดูผ่าน Internet,Symbian ,PDA,iPhone,BB,Android
- รองรับซอฟท์แวร์ CMS
| +Specification |
| System |
Main Processor |
Hight performance embedded microprocessor |
| Operating System |
EmbeddedLINUX |
| System Resources |
Pentaplex function:live, recording, playback, backup & remote access |
| User Interface |
GUI, on-screen menu tips |
| Control Device |
Front panel, USB mouse, IR rempte control |
| |
| Video |
Video Standards |
PAL 625 Line, 50 f/s per CH NTSC 30f/s per CH |
| Video Compression |
H.264 main profile |
| Video Recording |
CIF:PAL 25 f/s per CH NTSC 30f/s per CH |
| Motion Detection |
Zones:396(22*18) detection zones, Sensitivity:1-6 (6 highest) Trigger recording,
tour alarm, email & FTP |
| TV Output Audjustment |
Adjust TV Output color & display Zone |
| |
| Audio |
Audio Conpression |
G711A |
| Bidrectional Talk |
Support |
| |
| Record & Playback |
Recording Mode |
Manual >alarm > Video detection > Continous |
| Playback |
4 ch playback simultaneously, pause, stop, rewind, fast play, slow play, next file,
previous file, repeat, shuffle, backup selection |
| Search Mode |
Time/Date, Alarm, Motion, Detection & Exact search (accurateto second) |
| |
| Storage & Backup |
Space Occupation |
Audio 28.8 MB/H Video 150-200 MB/H |
| HDD Management |
Hard Disk hibernation technology, HDD faulty alarm&raid(Redundancy) |
| Backup Mode |
Network download/Flash Stick |
| |
| Interface |
Video Input |
8 ch |
| Video Output |
1 channel TV Output BNC,1.0 Vp-p,75, 1 VGA Output |
| Audio Input |
4 channel, RCA, 200-2800mV, 30k |
| Audio Output |
1 channel, RCA, 200-3000mV, 5k |
| Net Interface |
RJ-45 (10M/100M) |
| USB Interface |
2*USB 2.0 Ports |
| PTZ Control |
1 RS485 |
| Hard Disk |
1 SATAport(MAX2048G) |
| |
| Environment |
Power Supply |
12V/2A |
| Power Consumption |
<10W |
| Working Temperature |
0-55 |
| Working Humidity |
10%-90% |
| Atmosphere pressure |
86kpa - 106kpa |
| Dimension |
260*200*43mm |
| Weight |
2 KG |
| Mounting |
Desktop |
|
